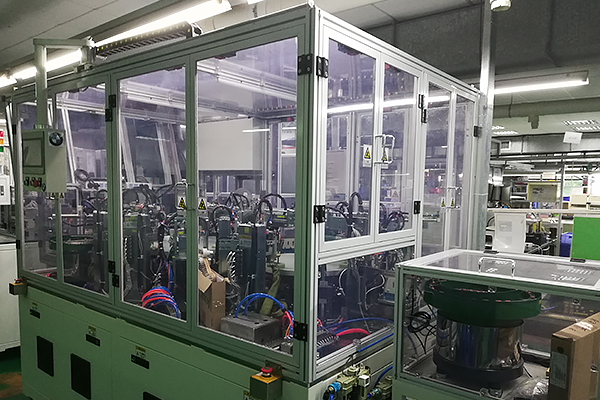

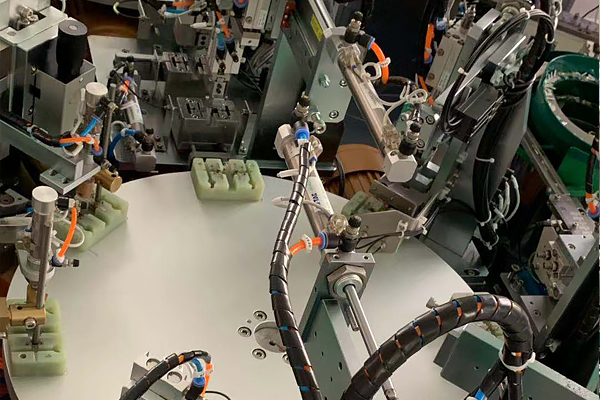

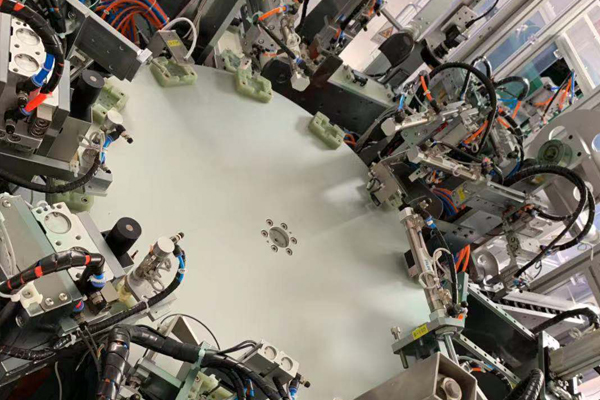

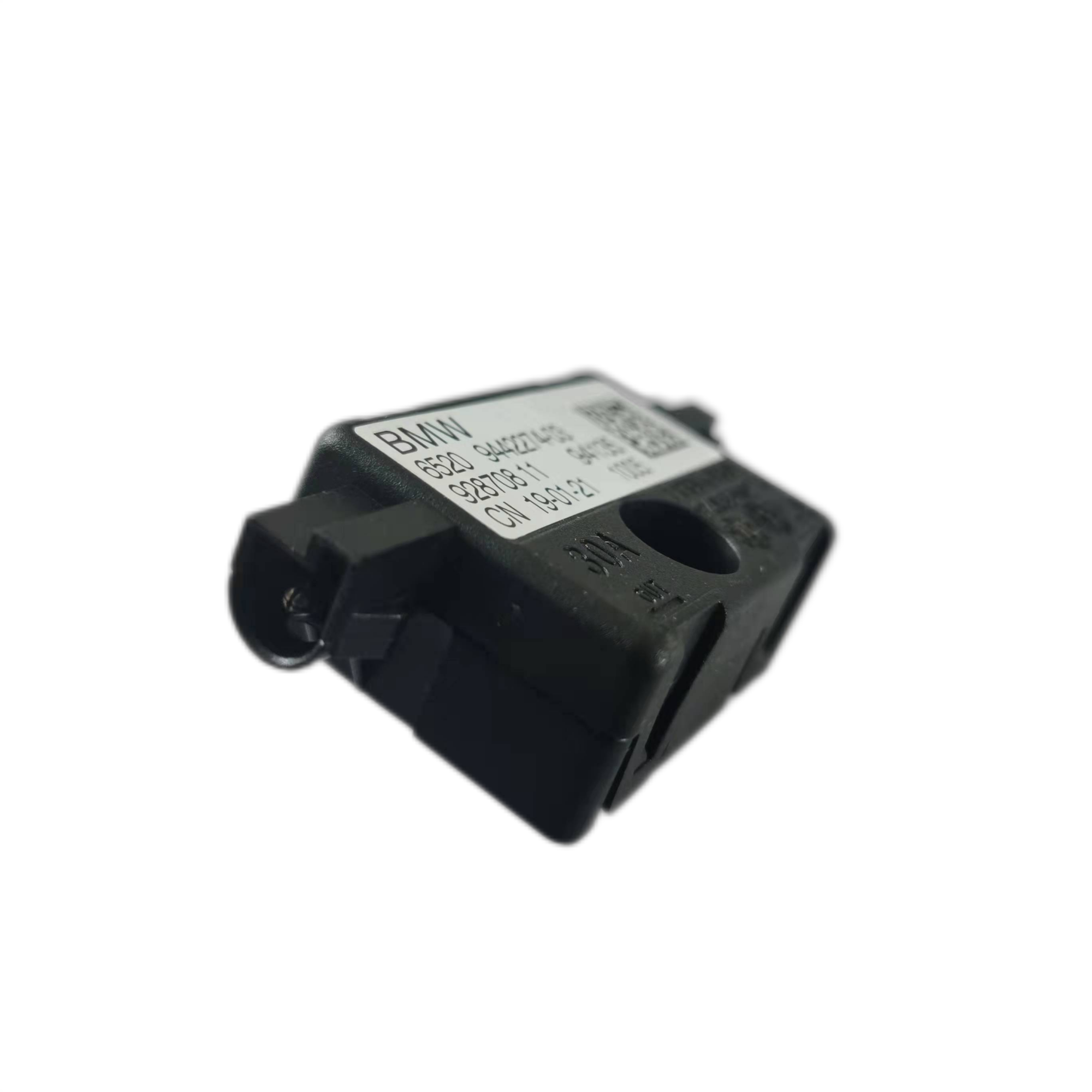

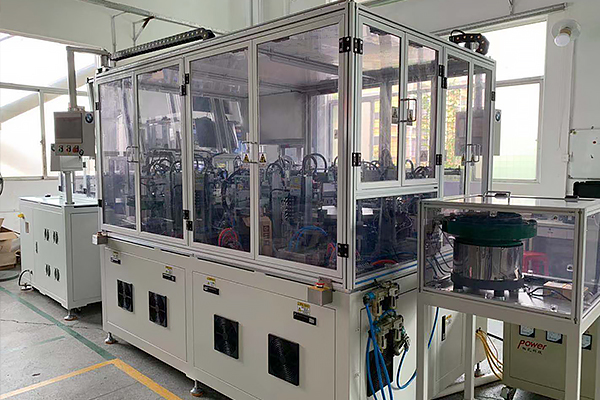

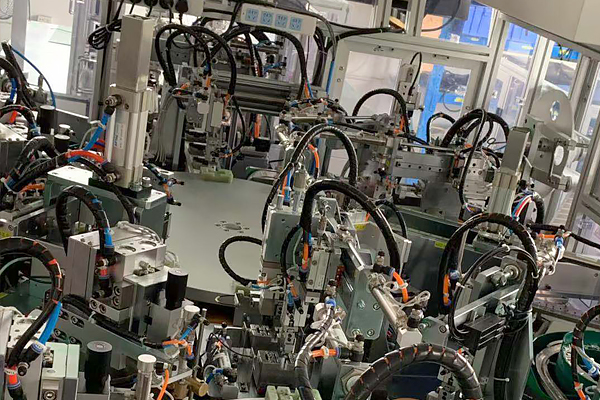

Automatic assembly and inspection multifunction of automobile components (BMW)

Product Name:

technological process

1.The materials are supplied automatically.

2. The two ends of the inductor are welded with the electrode (twice)

3. Assemble the fixed iron sheet into the lower cover 4. Assemble the welded inductor into the lower cover

5. Assemble the capacitor into the lower cover and weld it. 6. Install the screw into the iron sheet

7. Label the upper cover and CCD detection content 8. Assembly of upper cover and lower cover

9. CCD detects the concentricity of electrodes on both sides 10. Finished product telecommunication function detection

Equipment function: data link MES system
